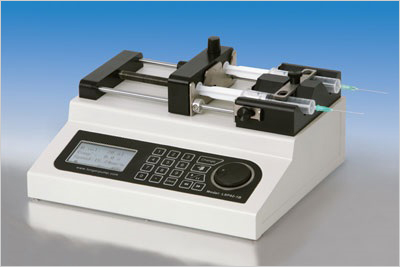

SCP-1B Syringe Pump는 2개 채널의 Syringe Pump로써 Injection & Withdrawal 전용입니다. SCP-1B Syringe Pump는 10μL ~ 140mL 시료를 적용 가능하며, 높은 정확도와 낮은 유량의 샘플 이송에 적합합니다.
|
|
|
|
|
|
Syringe Pump |
|
LSP02-1B |
|
|
|
|
|
|
|
Number of Channels |
|
2 |
|
|
|
|
|
|
|
Injected Volume per Micro-step |
|
0.0867µL (60 mL BD Syringe) |
|
|
|
|
|
|
|
Syringe Size |
|
10µL – 140 mL |
|
|
|
|
|
|
|
Flow Rate (60mL Syringe) |
|
2.779 µL/min – 72.24 mL/min |
|
|
|
|
|
|
|
Dimensions (mm) |
|
280×250×140 |
|
|
|
|
|
|
|
Weights (Kg) |
|
4.3 |
|
|
|
|
|
|
|
Working Mode |
|
Infusion / Withdraw |
|
|
|
|
|
|
|
Linear Force |
|
> 18Kg |
|
|
|
|
|
|
|
Advance per Micro-step |
|
1/16 Step (0.156µL) |
|
|
|
|
|
|
|
Max. Step Rate |
|
13867 (1/16 step) /sec |
|
|
|
|
|
|
|
Min. Step Rate |
|
16 (1/16) / 30 sec |
|
|
|
|
|
|
|
Max. Linear Rate |
|
130 mm/min |
|
|
|
|
|
|
|
Min. Linear Rate |
|
5µL/min |
|
|
|
|
|
|
|
Accuracy |
|
≤ 0.5% error in the condition of ≥ 30% of max.
infusion distance |
|
|
|
|
|
|
|
Setting Mode |
|
Rotary coded switch and membrane keypad |
|
|
|
|
|
|
|
Display |
|
128x64 graphic LCD |
|
|
|
|
|
|
|
Power Supply |
|
AC100 -240V |
|
|
|
|
|
|
|
Operation Condition |
|
Temperature: 5℃ - 40℃, Relative humidity: <80% |
|
|
|
|
|
|
|
