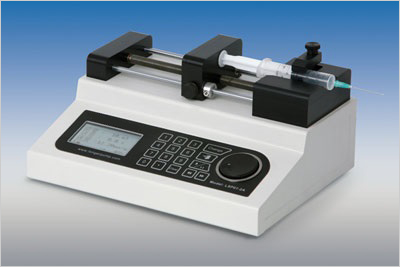

㈜신코에서 새롭게 공급하는 Syringe Pump를 소개합니다!
SCP-1A & SCP-2A Syringe Pump는 단일 채널의 Syringe Pump로써 Injection 전용입니다. SCP-1A & SCP-2A Syringe Pump는 10μL ~ 60mL 시료를 적용 가능하며, 높은 정확도와 낮은 유량의 샘플 이송에 적합합니다.
|
|
|
|
|
|
|
|
Syringe pump |
|
LSP01-1A |
|
LSP01-2A |
|
|
|
|
|
|
|
|
|
No. of Syringes |
|
1 |
|
1 |
|
|
|
|
|
|
|
|
|
Advance per
Microstep |
|
1/16step: 0.156μm |
|
1/16step: 0.03 μm |
|
|
|
|
|
|
|
|
|
Infusion Volume
per Microstep |
|
0.13μL (60mL BD Syringe) |
|
0.026μL (60mL BD Syringe) |
|
|
|
|
|
|
|
|
|
Syringe Size |
|
10μL ~ 60mL |
|
10μL ~ 60mL |
|
|
|
|
|
|
|
|
|
Max. Linear Rate |
|
65mm/min |
|
13mm/min |
|
|
|
|
|
|
|
|
|
Min. Linear Rate |
|
5μm/min |
|
1μm/min |
|
|
|
|
|
|
|
|
|
Flow Rate |
|
0.831nL/min ~ 54.155ml/min |
|
0.166nL/min ~ 10.83ml/min |
|
|
|
|
|
|
|
|
|
Working Mode |
|
Infusion |
|
|
|
|
|
|
|
|
|
Linear Force |
|
> 9kgf |
|
|
|
|
|
|
|
|
|
Max. Step Rate |
|
6933 (1/16step)/ sec |
|
|
|
|
|
|
|
|
|
Min. Step Rate |
|
16 (1/16 step) / 30sec |
|
|
|
|
|
|
|
|
|
Accuracy |
|
≤ 0.5% error in the condition of > 30% of max. infusion distance |
|
|
|
|
|
|
|
|
|
Setting Mode |
|
Rotary coded switch and membrane keypad |
|
|
|
|
|
|
|
|
|
Display |
|
128 x 64 graphic LCD |
|
|
|
|
|
|
|
|
|
Power |
|
AC 100 - 240 V |
|
|
|
|
|
|
|
|
|
Operating
Condition |
|
Temperature 5 °C - 40 °C Relative humidity < 80 % |
|
|
|
|
|
|
|
|
|
Dimensions |
|
280 × 210 × 140 mm |
|
280 × 210 × 140 mm |
|
|
|
|
|
|
|
|
|
Weights |
|
3.6 kg |
|
3.6kg |
|
|
|
|
|
|
|
|
|
