PerkinElmer사의 형광광도계 FL series를 소개합니다.

보다 높은 성능과 안정성을 기본으로 Application에 따라 최적화하여 사용할 수 있는 PerkinElmer사의 형광광도계 FL series가 출시되었습니다.

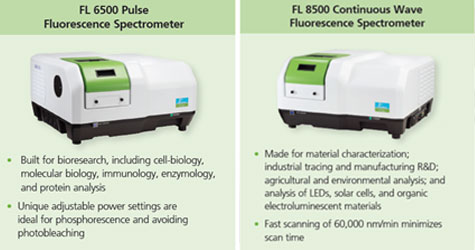

Bioresearch에 적합한 Pulsed Xenon Lamp를 사용하는 FL 6500 는 Lamp의 Power setting 직접 선택할 수 있어 보다 우수한 형광분광특성을 확보할 수 있습니다. 그리고 Continuous Xenon Lamp를 사용하여 월등한 성능을 자랑하는 FL 8500 모델은 모든 영역의 연구에 사용되어 보다 정밀하고 안정된 결과를 도출할 수 있습니다.

    Application
  • Agriculturalanalysis
  • Analysis of LEDs
  • Cell Biology
  • Coatings
  • Dye Tracing in Hydrology and Crop Spraying
  • Dyes and Printing
  • Environmental analysis
  • Enzymology
  • Food Counterfeit & Adulteration
  • Food safety, i.e. histamines
  • HydrocarbonsMeasurement
  • Immunology
  • Kinetics
  • Analysis of LEDs
  • Macro and Micro material integrity
  • Material characterization
  • Molecular Biology
  • Nanomaterials and Quantum dots
  • Organic EL materials
  • Polymer testing
  • Protein analysis
  • Solar cells

Specification

FL6500

FL 8500

Illumination Source

Pulse Xenon lamp with user defined Power Settings ; 120kw, 80kw, 40kw, 20kw

Xenon Arc (150W) lamp Source
Wavelength accuracy 0.5mm 0.5nm

Wavelength reproducibility

0.2mn

0.2nm

Wavelength scan speed

 24,000nm/min

60,000nm/min

Response

 ≥0.002, seconds

≥0.002, seconds

Weight Approx.

 46kg

46kg

Detector

 PMT R928

PMT R928

Sensitivity (S/N ratio)

Min 750 :1 (RMS) 4000:1 (RMS)
1000:1 (Peak to Peak)

Wavelength range (Ex and Em)

200 - 900 nm standard

200 - 900 nm standard

Slit width

1, 2.5, 5, 10, 20 nm

1, 2.5, 5, 10, 20 nm

Filter Wheel

12 slots that accept standard 12.5 mm round filters.

12 slots that accept 12.5 mm round filters.

Standard Excitation Filters

3 Excitation filters included.

3 Excitation filters included.

Standard Emission Filters

3 Emission filters included.

3 Emission filters included.

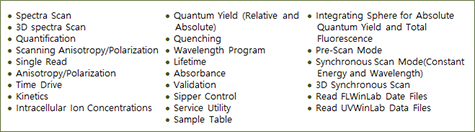

Software Features and Functionality
